The four functions of the color sorter electrical control system:

1. The output contact capacity is large, and an expansion module is installed as an actuator to control the start and stop of feeding, the start and stop of background board adjustment, the start and stop of air valve work, and cleaning, according to different color selection states To combine the lights.

2. The signal and separation board picks up the signal from the front panel and provides it to the main control board, and then the main control board transmits to the touch screen to display the waveform. The signal and separation board performs calculation and judgment based on the control data from the main control board. The air valve drive board and the light board provide signals, and the air valve drive board drives the air valve to remove heterochromatic particles.

3. The feeding plate drives the vibrating feeder to adjust the feeding amount; the motor drive plate drives the background plate adjustment system to adjust the background light of the Zhongrui Microvision photoelectric box to adapt to different materials.

4. The air valve drive board is the actuator, which drives the air valve to eliminate waste.

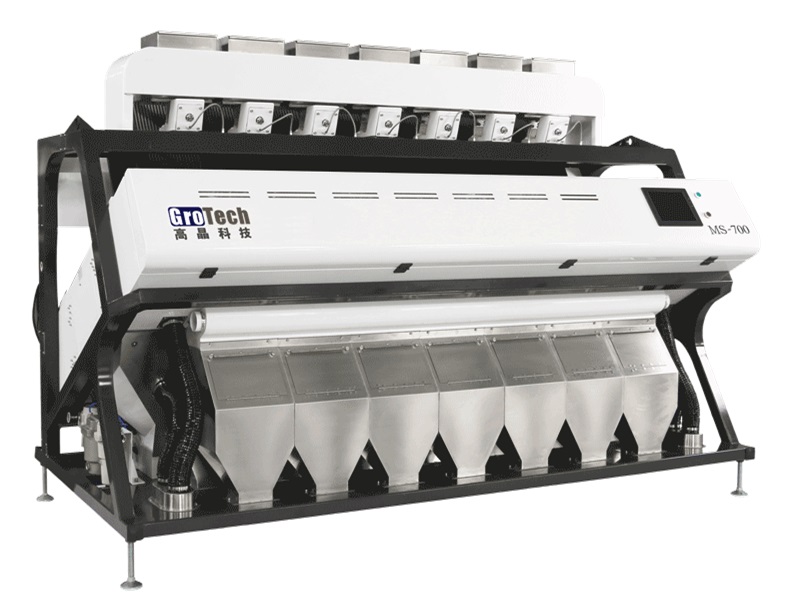

Our optical sorters classify a wide variety of seed varieties, from field crops and pasture seeds to vegetable seeds. They can detect unwanted colors, seed defects, diseased seeds and foreign property - helping you achieve better germination and promote the continued growth of seeds.
Contact us for more information.
