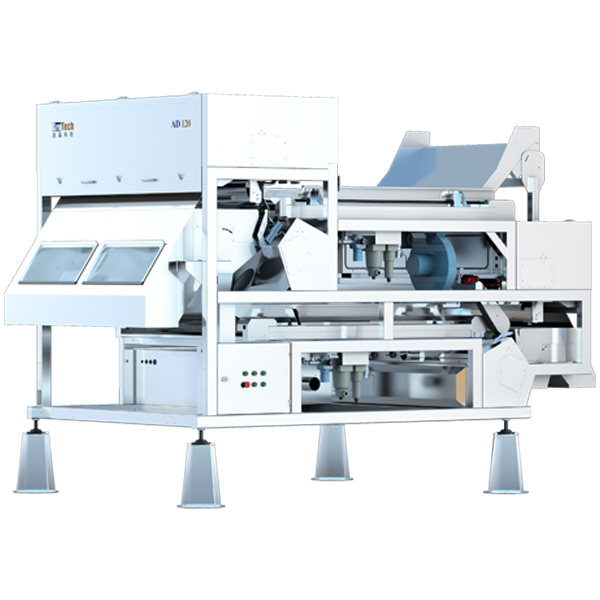

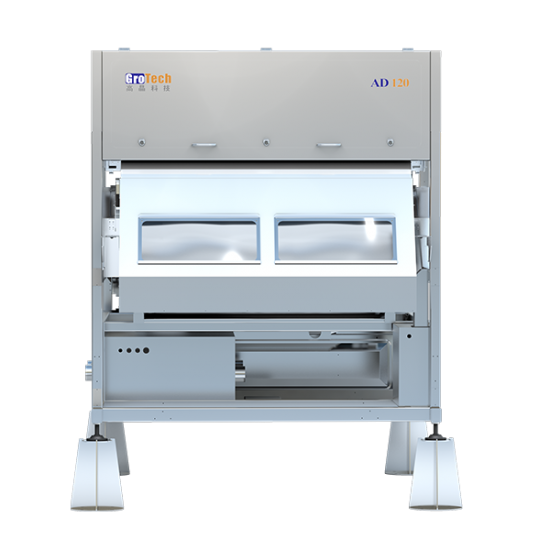

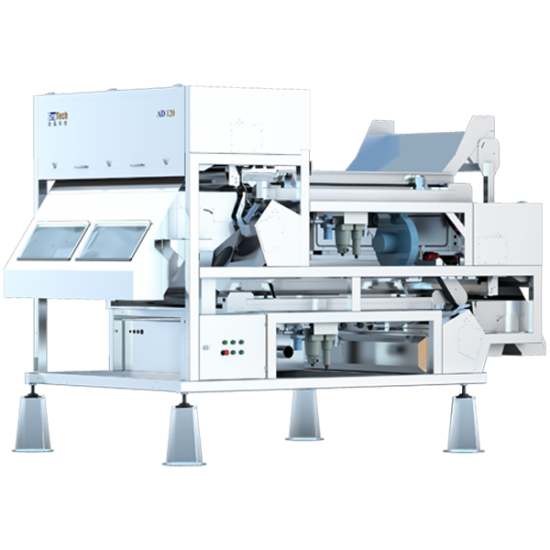

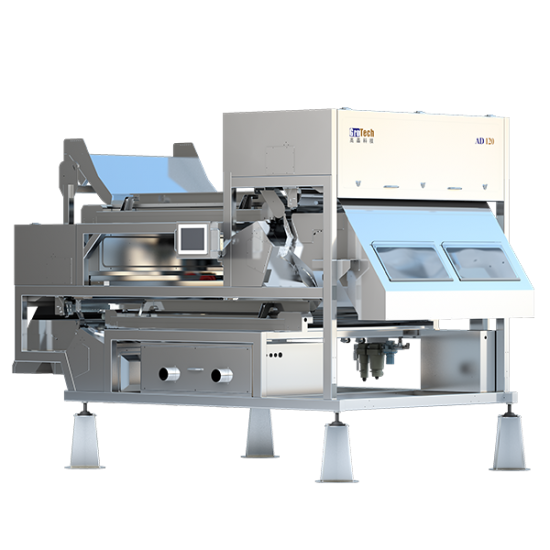

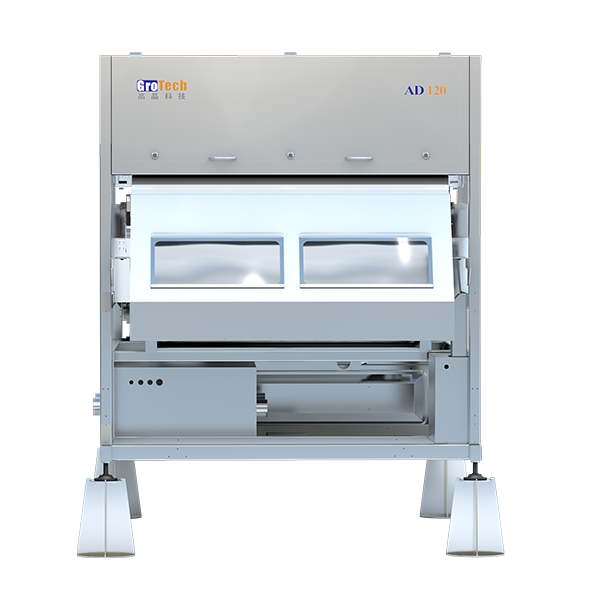

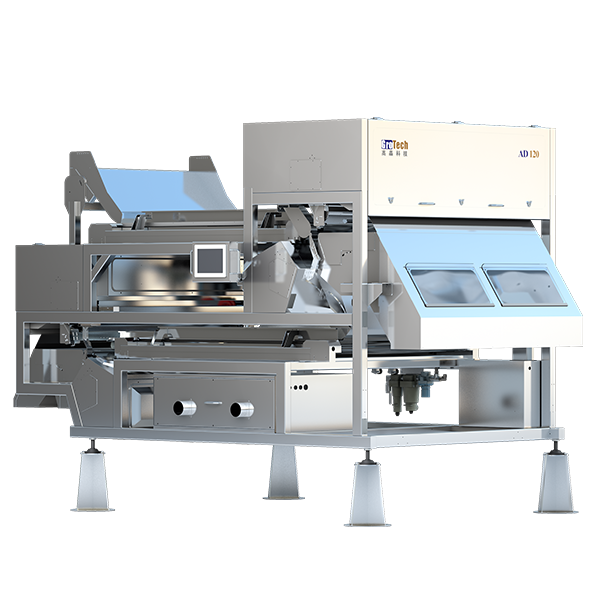

Double Layer Sorter With AI

Grotech sorter can sort almonds, hazelnuts, pistachios, pecans, macadamias and more. Foreign objects such as stones can be detected and removed from the raw material. Grotech Nut Color sorters always provide customers with intelligent, professional and comprehensive sorting solutions. Grotech nut color sorters will lead the industry towards new intelligence.
  • ItemNo :

    AD120
  • Brand:

    GROTECH
  • MOQ :

    1
  • Orgins :

    China
  • Color :

    White
  • Product Details

· Product characteristics

High-speed track design structure, greatly improve production capacity.

Standard modular hardware platform.

Artificial intelligence, more convenient operation.



· Sorted material

White Almond :Select those that are too big or too small, have skin area bigger than 3mm, insect damage, rotten. Mechanical broken stuff is good stuff.


Hazelnut : The stone impurities in the hazelnut, the shell, and the rotten color are selected.


Pistachio : Pick out the stone impurities and the unopened pistachios.


· Parameter Table


Model
AD120
Throughput(T/H)
3T
Voltage(V)
380V 50HZ
Power(KW)
6.2
Sorting accuracy(%)
>99
Rjection rate
60:1
Air source pressure (Mpa)
0.6-0.8
Layer double
Weight/(KG)
1720
Dimension(L*W*H/mm)
4990*2210*2610


· Configuration

ITEM
Performance
Key Components
8-inch LCD screen
True HD color sensor
Efficient lighting system
Exclusive Color Sorting Solutions
Large Model
Target-based multi-point positioning
Impurity Removal
Shell & kernel separation
Fixed-point removal of impurities(Stones,Plastics,glass)
Size/Texture sorting
Air Circuit System
Dust sucking system
Automatic stop conveyor system
Multi-point emergency stop
Raw material input separation system
Food-grade conveyor system
Machine Protection
IP65
Friendly HMI design
Multi-language support
Remote control (WiFi,3G,4G,5G)
Remote commissioning/update
