ItemNo :
ZF300Brand:
GROTECHMOQ :
1Orgins :
ChinaColor :
Customizedport :
Any Port In ChinaLead Date :
15-45daysPrice Range:
50000-100000/1Trichromatic RGB CCD:
5400elements×3 Lines
/Products Features/

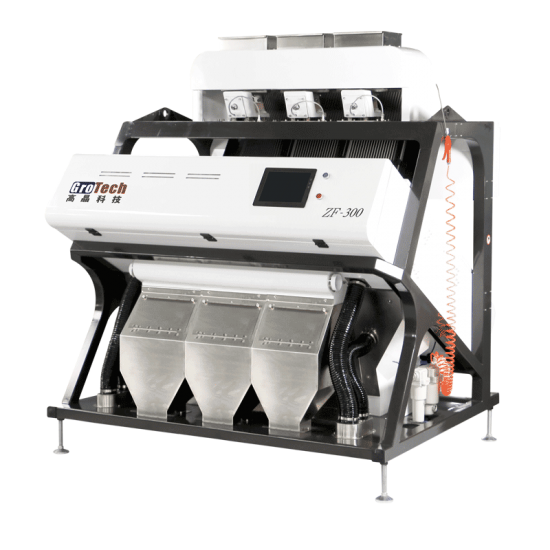

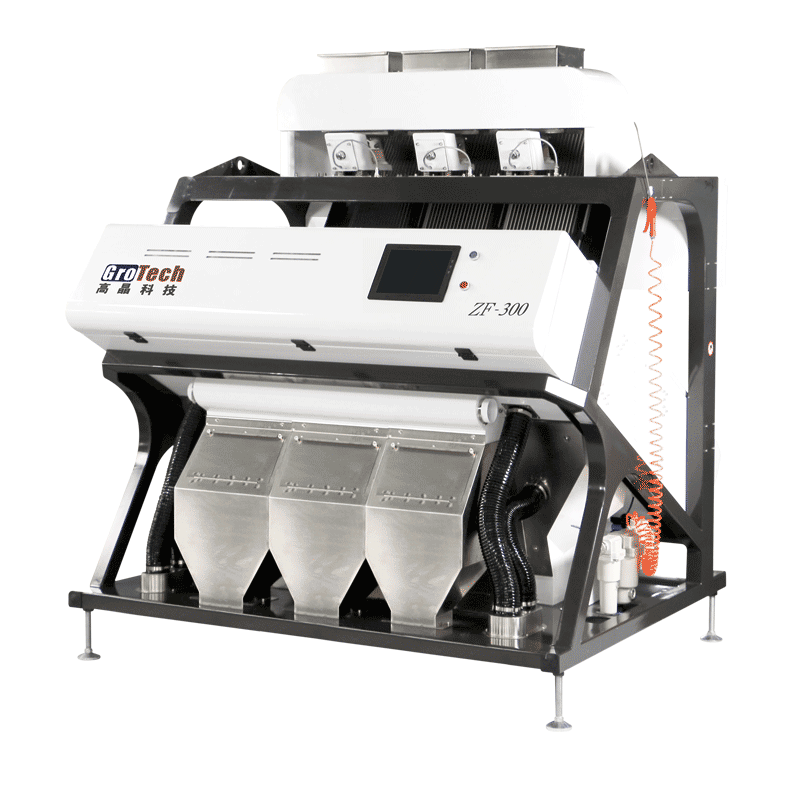

The Newest Tech Innovation Beans Color Sorter for Various Beans Sorting
* Optical Sorting technolgoy With High Resolution 4096 Pixel CCD Camera,High Reliability And Long Life LED Light Source;
*With Efficient And Stable Software System, Intelligent Algorism, User Friendly Interface;
*With Better Sorting Accuracy, Lower Carryover, And Bigger Production Capacity for Coffee Beans sorting, Black Beans sorting etc;
*SOC Platform To Realize Stable, Reliable, Ultra-Fast Mass Data Processing;
*colour sorter Image capturing&Auto Intelligent sorting sytem with hundred programs can be applied for various beans sorting;
* China Grotech provide Remote Debugging, Diagnosing And Maintenance. Four Core Technologies To Ensure Your Operations
/Parameter Table/
Model
ZF300
30:1
Product output(t/h)
1.0-3.0
Heating of tray
YES
Camera
CCD
Type of selection
Per size/color
Remote Access&Control
YES
Channel split
N/A
Net Weight (kg)
790
Europe Certification
YES
Type of illumination
LED LAMP
Power consumption(kw)
1.8
Dimension L×W×H(mm)
1774*1658*1850
Power supply(V/HZ)
220V±10%
50/60HZ
|
Model |
ZF300 |
ZF500 |
ZF700 |
||
|
Throughput(T/H) |
1.0-3.0 |
2.0-5.0 |
3.0-8.0 |
||
|
Voltage(V) |
110-250V（50-60HZ） |
||||
|
Power(KW) |
1.8 |
2.6 |
3.5 |
||
|
Weight/(KG) |
885 |
1275 |
1665 |
||
|
Dimension(L*W*H/mm) |
1174*1658*2038 |
2402*1658*2038 |
3030*1658*2038 |
||
|
Sorting accuracy(%) |
≥99 |
||||
|
Rejection rate(%) |
≥10:1 |
||||
|
Air consumption（L/min) |
800-1600 |
1300-2200 |
1800-3600 |
||
|
Notes |
Subject to different impurities of raw materials,parameters listed in table will change to some extent |
||||
/Sorting Results/
/Sorting Samples/
