ItemNo :
ZF700Brand:
GROTECHMOQ :
1Orgins :
ChinaColor :
Customizedport :
Any Port In ChinaLead Date :
15-45daysPrice Range:
50000-100000/1Trichromatic RGB CCD:
5400elements×3 Lines
/Products Features/

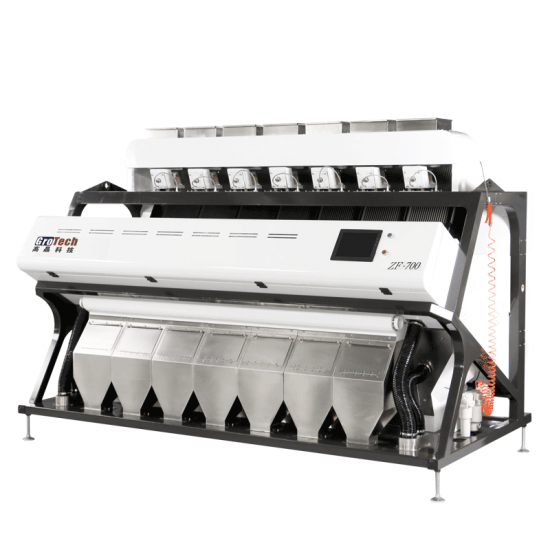

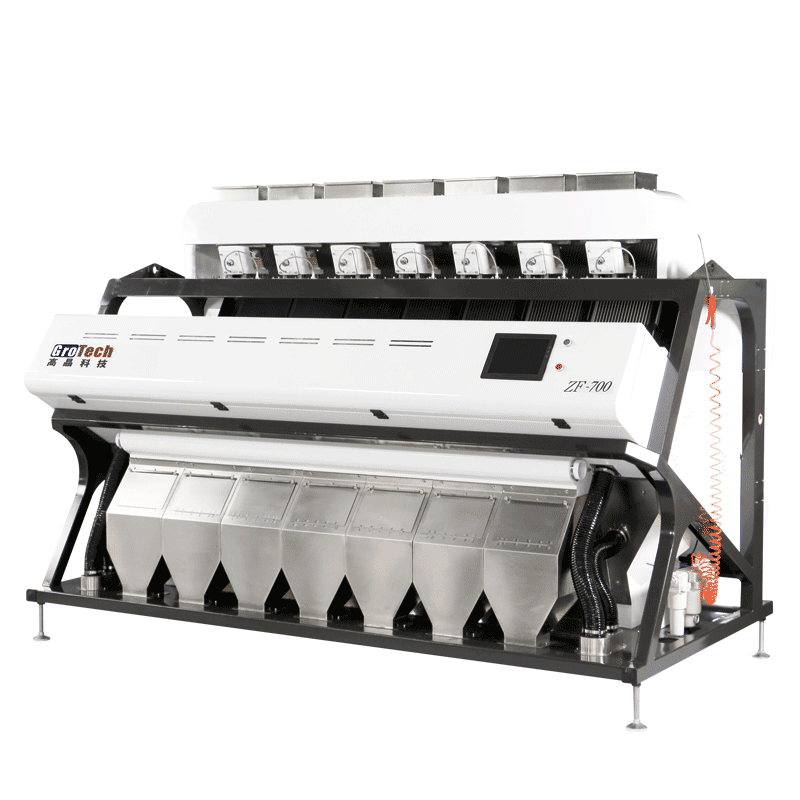

The Newest Tech Innovation Beans Color Sorter for Various Beans Sorting
* Optical Sorting technolgoy With High Resolution 4096 Pixel CCD Camera,High Reliability And Long Life LED Light Source;
*With Efficient And Stable Software System, Intelligent Algorism, User Friendly Interface;
*With Better Sorting Accuracy, Lower Carryover, And Bigger Production Capacity for Coffee Beans sorting, Black Beans sorting etc;
*SOC Platform To Realize Stable, Reliable, Ultra-Fast Mass Data Processing;
*colour sorter Image capturing&Auto Intelligent sorting sytem with hundred programs can be applied for various beans sorting;
* China Grotech provide Remote Debugging, Diagnosing And Maintenance. Four Core Technologies To Ensure Your Operations
/Parameter Table/
| Model | ZF700 |
| Optimized Carryover (Bad : Good) | 30:01:00 |
| Product output(t/h) | 3.0-8.0 |
| Heating of tray | YES |
| Camera | CCD |
| Type of selection | Per size/color |
| Remote Access&Control (connectivity) | YES |
| Channel split | N/A |
| Net Weight (kg) | 1665 |
| Europe Certification | YES |
| Type of illumination | LED LAMP |
| Power consumption(kw) | 3.5 |
| Dimension L×W×H(mm) | 3030*1658*1850 |
| Power supply(V/HZ) | 220V±10% |
| 50/60HZ |
|
Model |
ZF300 |
ZF500 |
ZF700 |
||
|
Throughput(T/H) |
1.0-3.0 |
2.0-5.0 |
3.0-8.0 |
||
|
Voltage(V) |
110-250V（50-60HZ） |
||||
|
Power(KW) |
1.8 |
2.6 |
3.5 |
||
|
Weight/(KG) |
885 |
1275 |
1665 |
||
|
Dimension(L*W*H/mm) |
1174*1658*2038 |
2402*1658*2038 |
3030*1658*2038 |
||
|
Sorting accuracy(%) |
≥99 |
||||
|
Rejection rate(%) |
≥10:1 |
||||
|
Air consumption（L/min) |
800-1600 |
1300-2200 |
1800-3600 |
||
|
Notes |
Subject to different impurities of raw materials,parameters listed in table will change to some extent |
||||
/Sorting Results/
/Sorting Samples/
