ItemNo :
MS500Brand:
GROTECHMOQ :
1Orgins :
ChinaColor :
Customizedport :
Any Port In ChinaLead Date :
10-45daysPrice Range:
50000-100000/1Trichromatic RGB CCD:
5400elements×3 Lines
/Products Features/

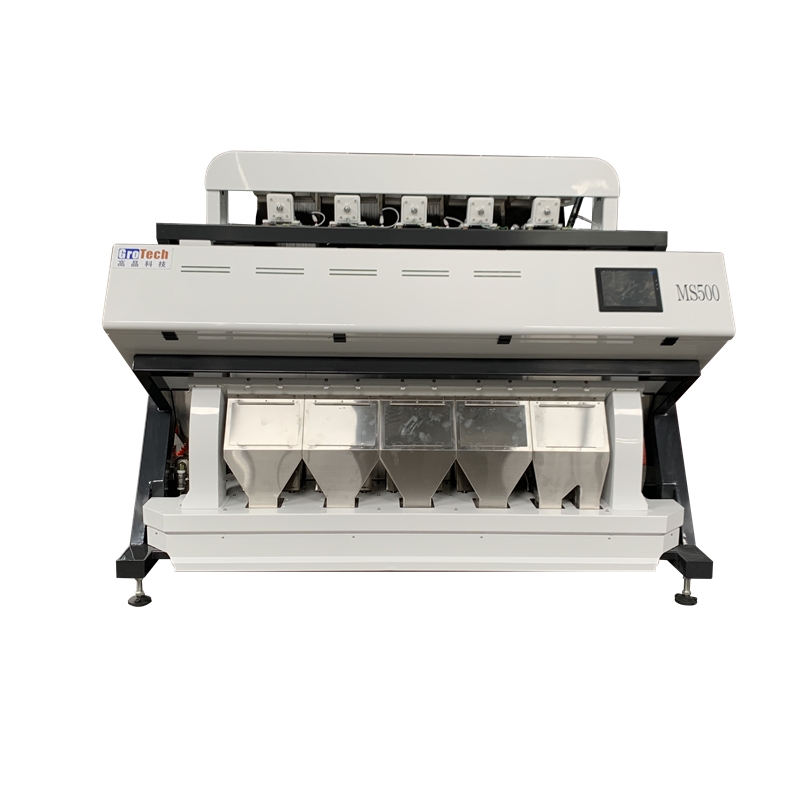

Grotech New Intelligent Color Sorter Machine Rice Color Sorter
*Optical Sorting With High Resolution 4096 Pixel CCD Camera,High Reliability And Long Life LED Light Source;
*Efficient And Stable Software System, Intelligent Algorism, User Friendly Interface;
*Better Sorting Accuracy, Lower Carryover, And Bigger Production Capacity;
*SOC Platform To Realize Stable, Reliable, Ultra-Fast Mass Data Processing;
*Rice Colour Sorter Machine With Expert Sorting Solution Realizes One Key Debugging
*Remote Debugging, Diagnosing And Maintenance. Four Core Technologies To Ensure Your Operations
/Parameter Table/
Model
MS500
50:1
Product output(t/h)
2.0-5.0
Heating of tray
YES
Camera
CCD
Type of selection
Per size/color
Remote Access&Control
(connectivity)
YES
Channel split
YES
Net Weight (kg)
1460
Europe Certification
YES
Type of illumination
LED LAMP
Power consumption(kw)
2.6
Dimension L×W×H(mm)
2540*1610*1985
Power supply(V/HZ)
220V±10%
50/60HZ
|
Model |
MS300 |
MS500 |
MS700 |
|
Throughput(T/H) |
1.0-3.0 |
2.5-7.0 |
4.5-10.0 |
|
Voltage(V) |
110-250V(50-60HZ) |
||
|
Power(KW) |
1.8 |
2.6 |
3.5 |
|
Weight/(KG) |
885 |
1275 |
1665 |
|
Dimension(L*W*H/mm) |
1174*1658*2038 |
2402*1658*2038 |
3030*1658*2038 |
|
Sorting accuracy(%) |
≥99 |
||
|
Rejection rate(%) |
≥10:1 |
||
|
Air consumption（L/min) |
800-1600 |
1300-2200 |
1800-3600 |
|
Notes |
Subject to different impurities of raw materials,parameters listed in table will change to some extent |
||

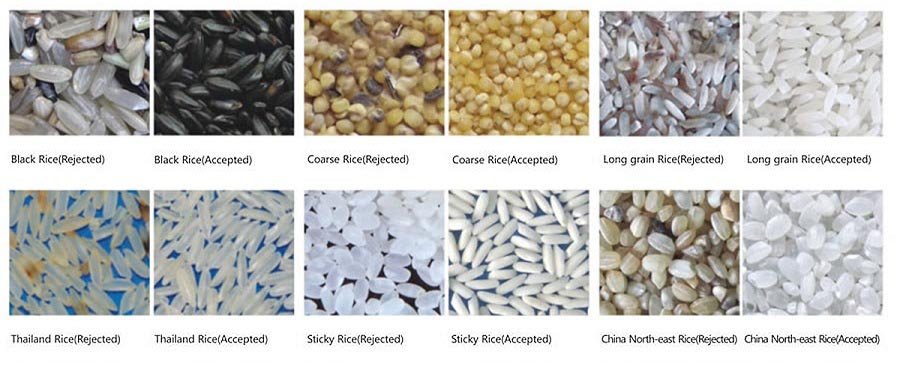

/Sorting Results/

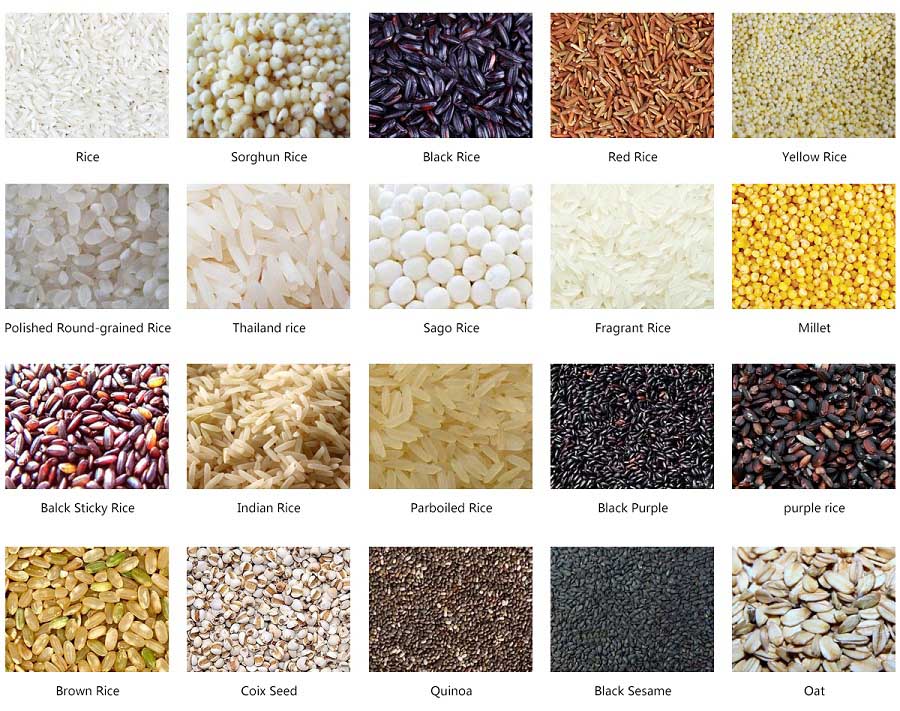

/Sorting Examples/
/Accessories display/
 |
 |
 |
 |
|
1024x600 air box |
1024x600 air switch |
1024x600 air switch |
1024x600 box |
 |
 |
 |
 |
|
1024x600 calibration tools |
1024x600 calibration tools |
1024x600 calibration tools |
1024x600 calibration tools |
 |
 |
 |
 |
|
1024x600 camera board |
1024x600 camera board |
1024x600 camera lens |
1024x600 chute |
 |
 |
 |
 |
|
1024x600 chute |
1024x600 chute |
1024x600 communication board |
1024x600 connector |
 |
 |
 |
 |
|
1024x600 connector |
1024x600 connector |
1024x600 core board |
1024x600 ejector board |
 |
 |
 |
 |
|
1024x600 ejector main board |
1024x600 ejector main board |
1024x600 ejector |
1024x600 ejector |
 |
 |
 |
 |
|
1024x600 fan |
1024x600 feeder |
1024x600 feet |
1024x600 filter |
 |
 |
 |
 |
|
1024x600 filter |
1024x600 high speed collection board |
1024x600 hopper |
1024x600 LED |
 |
 |
 |
 |
|
1024x600 power |
1024x600 power |
1024x600 power |
1024x600 power |
 |
 |
 |
 |
|
1024x600 power |
1024x600 power |
1024x600 sensor |
1024x600 switch |
 |
 |
 |
 |
|
1024x600 switch |
1024x600 switch |
1024x600 switch |
1024x600 touch screen |
 |
 |
 |
 |
|
1024x600 wiper |
1024x600 wiper |
1024x600 wiper |
1024x6003M wire |
