ItemNo :
MS300Brand:
GROTECHMOQ :
1Orgins :
ChinaColor :
Customizedport :
Any Port In ChinaLead Date :
10-45daysPrice Range:
10000-100000/1CCD Monochromatic:
2048
/Products Features/

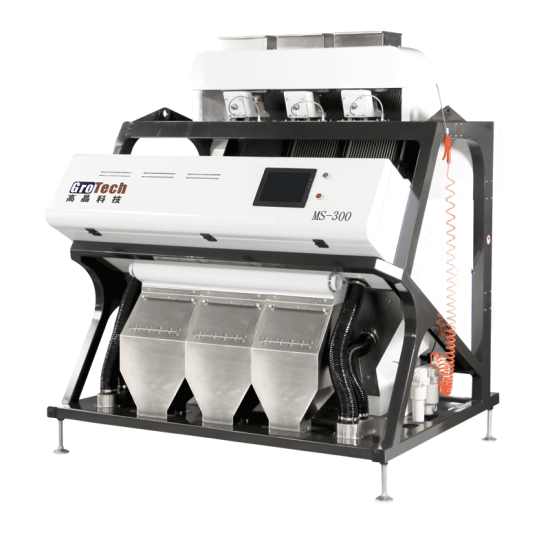

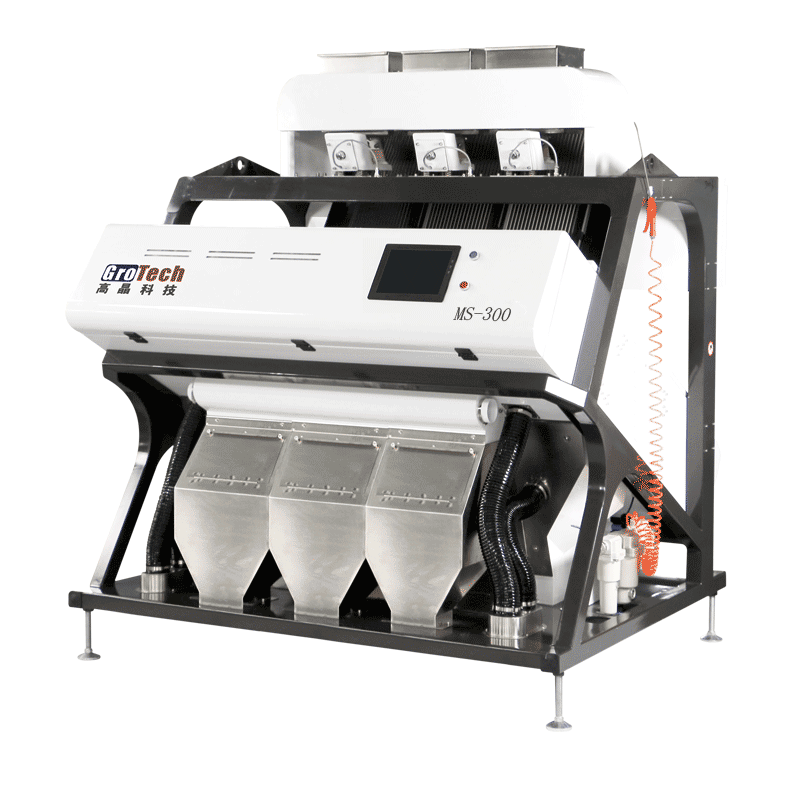

Grotech New Intelligent Color Sorter Machine Rice Color Sorter
*Optical Sorting With High Resolution 4096 Pixel CCD Camera,High Reliability And Long Life LED Light Source;
*Efficient And Stable Software System, Intelligent Algorism, User Friendly Interface;
*Better Sorting Accuracy, Lower Carryover, And Bigger Production Capacity;
*SOC Platform To Realize Stable, Reliable, Ultra-Fast Mass Data Processing;
*Rice Colour Sorter Machine With Expert Sorting Solution Realizes One Key Debugging
*Remote Debugging, Diagnosing And Maintenance. Four Core Technologies To Ensure Your Operations
/Parameter Table/
Model
MS300(MS189)
30:1
Product output(t/h)
1.0-3.0
Heating of tray
YES
Camera
CCD
Type of selection
Per size/color
YES
Channel split
YES
Net Weight (kg)
715
Europe Certification
YES
Type of illumination
LED LAMP
Power consumption(kw)
1.8
Dimension L×W×H(mm)
1785*1530*1640
Power supply(V/HZ)
|
Model |
MinA 32 |
M1 |
M2 |
M3 |
M4 |
M5 |
M6 |
M7 |
M8 |
M10 |
M12 |
|
Executing Unit |
32 |
64 |
128 |
192 |
256 |
320 |
384 |
448 |
512 |
640 |
768 |
|
Throughput(T/H) |
0.08-0.5 |
0.5-2.0 |
1.0-3.0 |
2.0-6.0 |
3.0-8.0 |
5.0-10.0 |
7.0-12.0 |
9.0-14.0 |
11.0-16.0 |
13.0-20.0 |
14.0-24.0 |
|
Voltage(V) |
110-250V(50-60HZ) |
||||||||||
|
Power(KW) |
1 |
1 |
1.4 |
1.8 |
2.2 |
2.6 |
3 |
3.5 |
4 |
5 |
6 |
|
Weight(KG) |
140 |
210 |
350 |
600 |
750 |
880 |
1050 |
1150 |
1250 |
1400 |
1650 |
|
Dimension(L*W*H/mm) |
1320*540*1130 |
960*1630*2050 |
1340*1630*2050 |
1610*1630*2050 |
1965*1630*2050 |
2225*1630*2050 |
2592*1630*2050 |
2980*1630*2050 |
3068*1630*2050 |
2980*2116*1990 |
2980*2430*1990 |
|
Sorting Accuracy(%) |
≥99.99 |
||||||||||
|
Rejection Rate(%) |
≥10:1 |
||||||||||
|
Air Consumption(L/min) |
200-600 |
400-800 |
600-1000 |
800-1600 |
1000-1800 |
1300-2200 |
1500-3000 |
1800-3600 |
2200-4000 |
2400-4500 |
2700-5000 |
|
Notes |
Subject to different impurities of raw materials,parameters listed in above table will charge to some extent |
||||||||||
/Sorting Results/
/Sorting Examples/
