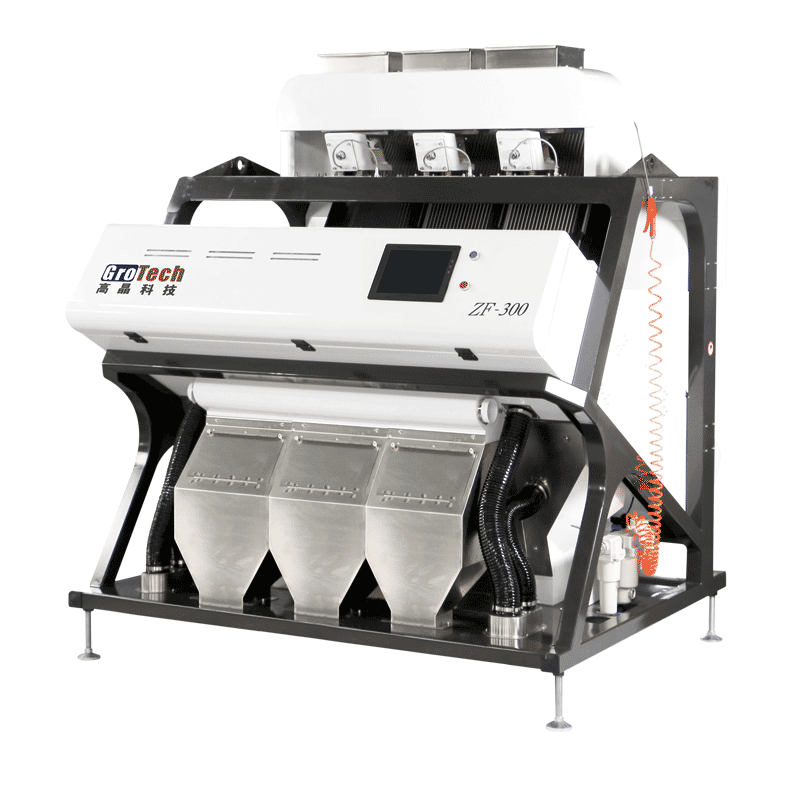

ItemNo :
ZF300Brand:
GROTECHMOQ :
1Orgins :
ChinaColor :
Customizedport :
Any Port In ChinaLead Date :
15-45daysPrice Range:
30000-100000/1Trichromatic RGB CCD:
5400elements×3 Lines
/Plastic Color Sorting machine Features/
RGB Color Sorter Machine for PP, PET, PVC,ABS Recycling Industries
*Optical Sorting With Professional Industrial Wide View Camera Lens,Top Chromatic CCD Sensor,High Reliability And Long Life Source ,American Super Speed FPGA Processor;
*Color Sorting,Shape Sorting And Material Sorting Functions Combined;
*With High Frequency And Big Capacity Ejectors Suitable For Wide Range Of Materials,Higher Efficiency;
*Intelligent System, Self-Learning Function,Easy Operation;
*RGB Camera Identification, Higher Accuracy,New SteadyTemperature Light Source
*Unique Bionic Technology Camera,Cloud Computing ,Massive Data Analysis
/Plastic Color Sorting machine Parameter Table/
Model
ZF300
30:1
Product output(t/h)
1.0-3.0
Heating of tray
YES
Camera
CCD
Type of selection
Per size/color
Remote Access&Control
YES
Channel split
N/A
Net Weight (kg)
790
Europe Certification
YES
Type of illumination
LED LAMP
Power consumption(kw)
1.8
Dimension L×W×H(mm)
1774*1658*1850
Power supply(V/HZ)
220V±10%
50/60HZ
|
Model |
GY1 |
GY2 |
GY3 |
GY4 |
GY5 |
GY6 |
GY7 |
GY8 |
GY10 |
GY12 |
|
Executing Unit |
64 |
128 |
192 |
256 |
320 |
384 |
448 |
512 |
640 |
768 |
|
Throughput(T/H) |
0.2-0.5 |
0.3-0.8 |
0.5-1.0 |
0.6-1.5 |
0.6-2.0 |
0.8-2.0 |
1.0-3.0 |
1.5-3.0 |
2.0-4.0 |
3.0-6.0 |
|
Voltage(V) |
|
|
110-250V（50-60HZ） |
|||||||
|
Power(KW) |
1 |
1.4 |
1.8 |
2.2 |
2.6 |
3 |
5 |
6 |
7 |
8 |
|
Weight(KG) |
210 |
350 |
600 |
750 |
880 |
1050 |
1150 |
1250 |
1400 |
1650 |
|
Dimension(L*W*H/mm) |
960*1630*2050 |
1340*1630*2050 |
1610*1630*2050 |
1965*1630*2050 |
2225*1630*2050 |
2595*1630*2050 |
2980*2116*1990 |
3068*1630*2050 |
2980*2116*1990 |
2980*2430*1990 |
|
Sorting accuracy(%) |
|
|
≥99.99 |
|||||||
|
Rejection rate(%) |
|
|
≥8:1 |
|||||||
|
Air consumption（L/min) |
400-800 |
600-1000 |
800-1600 |
1000-1800 |
1300-2200 |
1500-3000 |
1800-3600 |
2200-4000 |
2400-4500 |
2700-5000 |
|
Notes |
Subject to different impurities of raw materials,parameters listed in above table will charge to some extent |
|||||||||
/Plastic Color Sorting machine Sorting Results/
/Plastic Color Sorting machine Sorting Samples/
