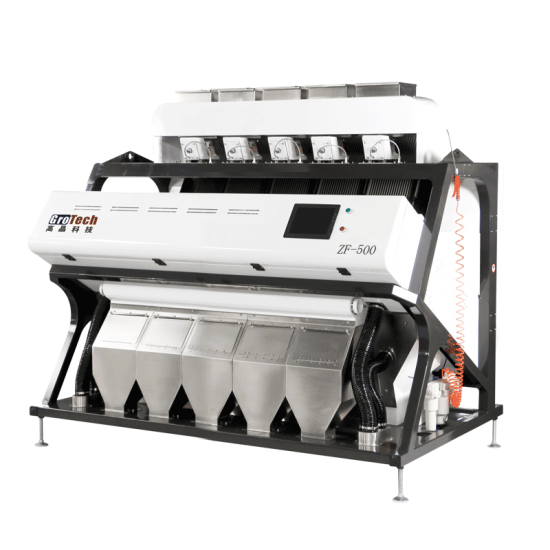

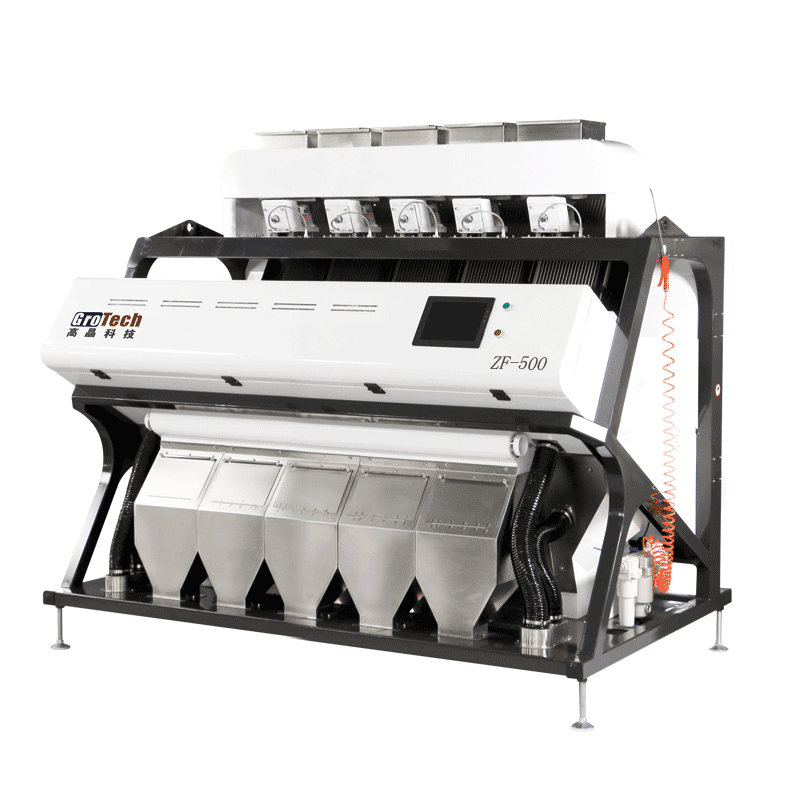

Recycling Plastic Different Color Sorting Machine

Recycling Plastic Different Color Sorting Machine

GROTECH color sorter machine, Sorting Solution for Plastic Recycling and Salt Industries, RGB CCD Optical Sorting Machine for plastic, Salt, Quartz etc. applications

  • ItemNo :

    ZF500
  • Brand:

    GROTECH
  • MOQ :

    1
  • Orgins :

    China
  • Color :

    Customized
  • port :

    Any Port In China
  • Lead Date :

    15-45days
  • Price Range:

    50000-100000/1
  • Trichromatic RGB CCD:

    5400elements×3 Lines
  • Product Details

           /Color Sorting Machine Products Features/

Recycling Plastic Different Color Sorting Machine
*Optical Sorting With Professional Industrial Wide View Camera Lens,Top Chromatic CCD Sensor,High Reliability And Long Life Source ,American Super Speed FPGA Processor;
*Color Sorting,Shape Sorting And Material Sorting Functions Combined;
*With High Frequency And Big Capacity Ejectors Suitable For Wide Range Of Materials,Higher Efficiency;
*Intelligent System, Self-Learning Function,Easy Operation;
*RGB Camera Identification, Higher Accuracy,New SteadyTemperature Light Source
*Unique Bionic Technology Camera,Cloud Computing ,Massive Data Analysis


           /Color Sorting Machine Parameter Table/


Model ZF500
Optimized Carryover
(Bad : Good)
30:1
Product output(t/h) 2.0-5.0
Heating of tray YES
Camera CCD
Type of selection Per size/color
Remote Access&Control
 (connectivity)
YES
Channel split N/A
Net Weight (kg) 1250
Europe Certification YES
Type of illumination LED LAMP
Power consumption(kw) 2.6
Dimension L×W×H(mm) 2402*1658*1850
Power supply(V/HZ)
220V±10%
50/60HZ


Model

ZF300

ZF500

ZF700

Throughput(T/H)

1.0-3.0

2.0-5.0

3.0-8.0

Voltage(V)

110-250V(50-60HZ)

Power(KW)

1.8

2.6

3.5

Weight/(KG)

885

1275

1665

Dimension(L*W*H/mm)

1174*1658*2038

2402*1658*2038

3030*1658*2038

Sorting accuracy(%)

≥99

Rejection rate(%)

≥10:1

Air consumption(L/min)

800-1600

1300-2200

1800-3600

Notes

 Subject to different impurities of raw materials,parameters listed in table will change to some extent

               /Color Sorting Machine Results/

PET plastic color sorter

             /Color Sorting Machine Samples/

PET plastic color sorter
